Expert Bearing Proof Load and Deflection Testing

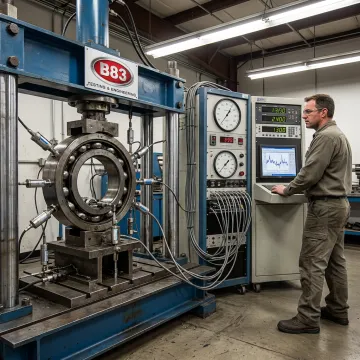

A bearing proof load test applies a specified load to a bearing or bearing assembly to confirm it can withstand that force without unacceptable permanent deformation, damage, or loss of function. The test often includes load monitoring, displacement measurement, and post-test inspection so engineers can verify safety margins and document performance against design or customer requirements.

A proof load test is a controlled mechanical test that subjects a component to a defined load above normal operating conditions but below its expected failure point. The goal is to prove the part can safely tolerate the required load. Results may include pass/fail documentation, load-deflection data, visual observations, and evidence for quality, validation, or compliance records.

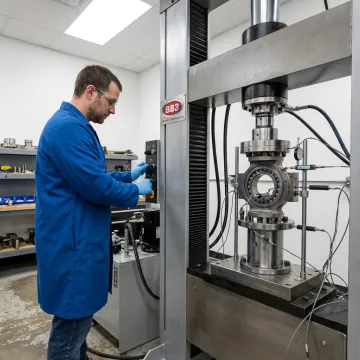

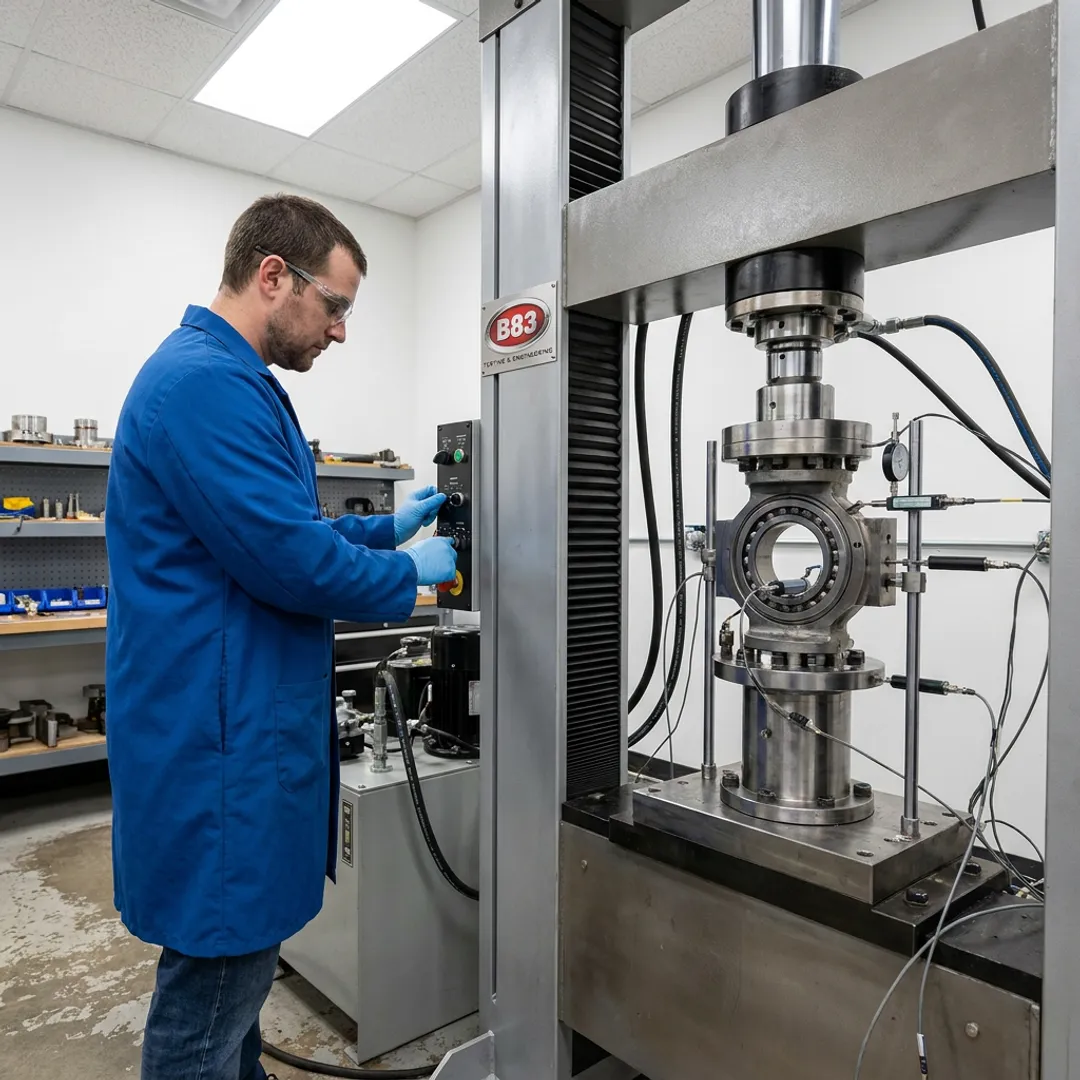

Deflection testing measures how much a bearing or assembly moves, compresses, or deforms as load is applied. This helps determine stiffness, alignment behavior, and whether deformation stays within acceptable limits. For bearing applications, deflection data can reveal design weaknesses, fixture interaction, housing effects, or performance changes that are not visible from load capacity alone.

B83 Testing & Engineering supports automotive, railroad, agricultural equipment, construction equipment, professional tools, medical devices and machines, electrical power controls, consumer products, and aerospace applications. Bearing proof load and deflection testing is especially useful for assemblies exposed to high forces, repeated loading, safety-critical operation, or demanding customer qualification requirements.

A typical report can include the test setup, fixture details, calibrated equipment references, load profile, displacement or deflection measurements, observations during testing, post-test condition, and pass/fail conclusions when criteria are provided. Because B83 is ISO/IEC 17025:2017 accredited by ANAB, reporting is structured to support quality decisions and traceable engineering documentation.

Yes. B83 Testing & Engineering has custom fixture design and test development capabilities for components that do not fit a standard setup. Engineers review the bearing geometry, load direction, mounting conditions, and measurement goals to create a fixture approach that supports accurate loading and meaningful deflection data while reflecting intended use as closely as practical.

Proof load testing verifies that a bearing can withstand a specified load without unacceptable damage or deformation. Ultimate strength testing continues loading until failure or maximum capacity is reached. Proof load testing is typically used for verification and acceptance, while ultimate strength testing helps define design limits, failure modes, and maximum load capacity.

Turnaround depends on fixture complexity, sample quantity, load requirements, instrumentation, and reporting needs. B83 is known for flexible scheduling and accommodating changing client demands, especially when project timelines are tight. Providing drawings, target loads, acceptance criteria, and the intended load direction early helps the team plan efficiently and reduce avoidable delays.
