Adhesive Shear Testing Services — ASTM D1002 Compliance

ASTM D1002 measures the apparent shear strength of single-lap-joint adhesively bonded metal specimens loaded in tension. It is commonly used to compare adhesive systems, surface preparation methods, cure schedules, and production process changes. Results typically include maximum load, calculated shear strength, specimen details, failure observations, and any deviations from the specified method.

ASTM D1002 is primarily written for adhesively bonded metal-to-metal lap shear specimens. The method defines specimen geometry, overlap area, loading direction, and reporting expectations. If your application uses plastics, composites, coatings, or nonstandard dimensions, B83 can review the objective and help determine whether ASTM D1002, a modified method, or another adhesive test standard is more appropriate.

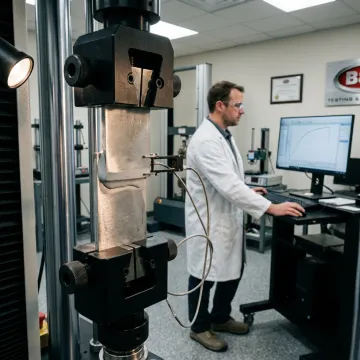

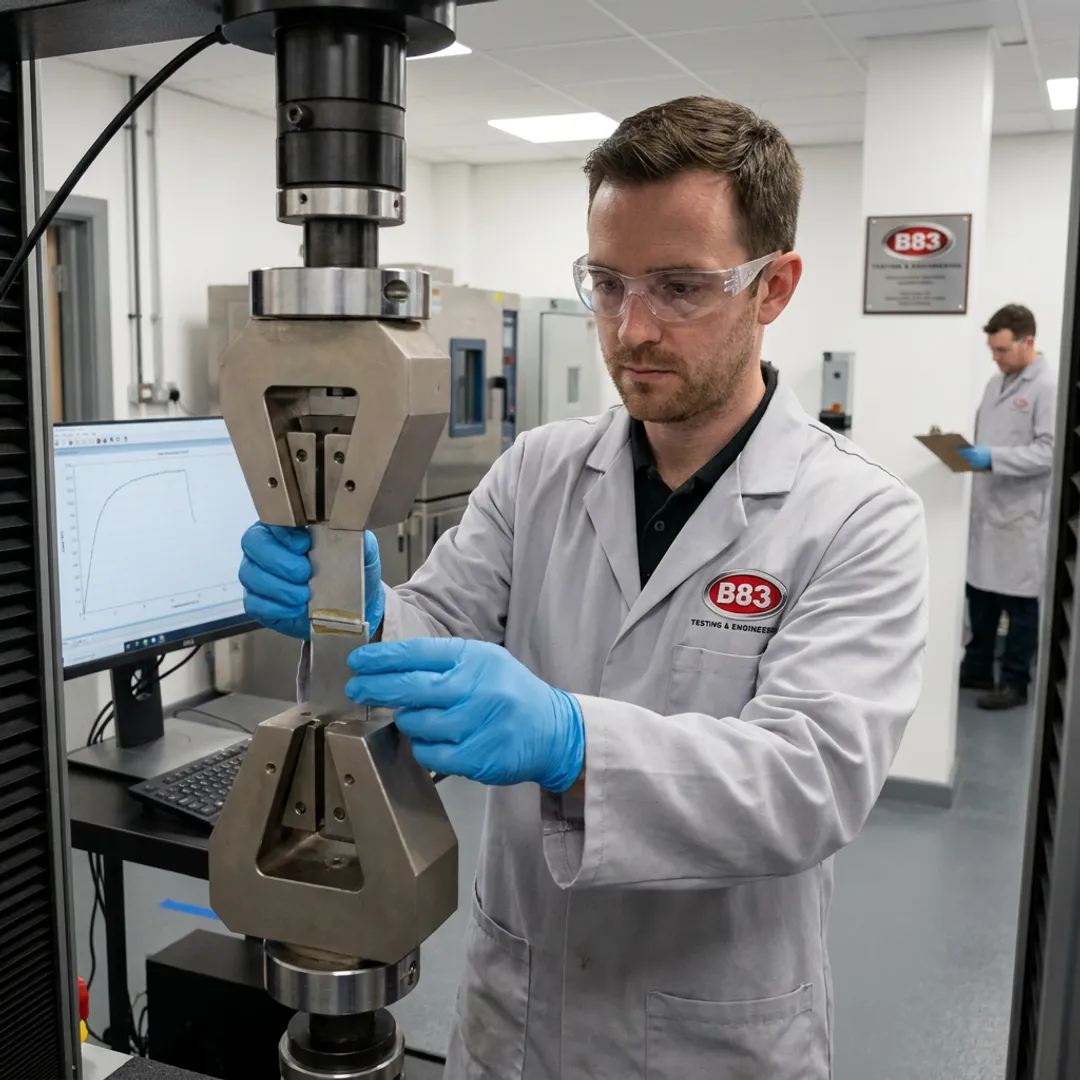

Testing is performed by loading the bonded single-lap specimen in tension until failure or until a defined endpoint is reached. The recorded force and bonded overlap area are used to calculate apparent shear strength. B83’s load/displacement and tensile testing capabilities support controlled loading, data capture, and documentation needed for engineering evaluation or compliance records.

Specimen requirements depend on the exact project scope, material, adhesive, and reporting needs. ASTM D1002 defines standard lap-joint dimensions and overlap geometry, but many programs also include multiple replicates for statistical confidence. Clients should provide substrate material, adhesive type, cure history, surface preparation details, and any acceptance criteria or customer specifications tied to the test.

B83 can provide testing and reporting aligned to ASTM D1002 requirements, including load data, calculated shear strength, specimen identification, test conditions, and failure mode observations. As an ISO/IEC 17025:2017 accredited testing laboratory, B83 supports documented, traceable testing for customers needing reliable quality, design verification, or supplier qualification evidence.

Turnaround depends on specimen readiness, fixture needs, test quantity, conditioning requirements, and current lab schedule. B83 is known for flexible scheduling and accommodating changing client demands when possible. If specimens are already prepared and the method is straightforward, the team can usually define a clear schedule after reviewing your test matrix and documentation requirements.

A typical report includes the test method reference, specimen details, equipment or setup information, applied loading data, maximum force, calculated apparent shear strength, and observations about the failure location or mode. Reports can also document customer specifications, conditioning details, and deviations when relevant, helping engineering and quality teams make defensible product or process decisions.

Yes. B83’s engineering team can support custom fixture design and modified test development when a standard setup does not fully represent your product or bonded assembly. For nonstandard adhesive joints, the lab can help define a practical test approach, capture load/displacement behavior, and document the method clearly for comparison, validation, or internal quality review.
